- Model NO.
- KF1
- Delivery
- EXW / FOB
- Minimum order quantity
- 108 pieces
- Supply Ability
- 100000 pieces / Month
- Country of Origin
- Shenzhen China
- Stock Time
- 3-5 Days
1. Features
- Read 125KHz EM Card and HID Card (Optional)
- Read 13.56MHz Mifare card and CPU card (Optional)
- Metal backlight keypad
- Contain reader mode, the transmission format could be adjusted by user.
- Support seven access ways
- Support admin add card and admin delete card
- 10,000 card/pin users and 600 fingerprint users.

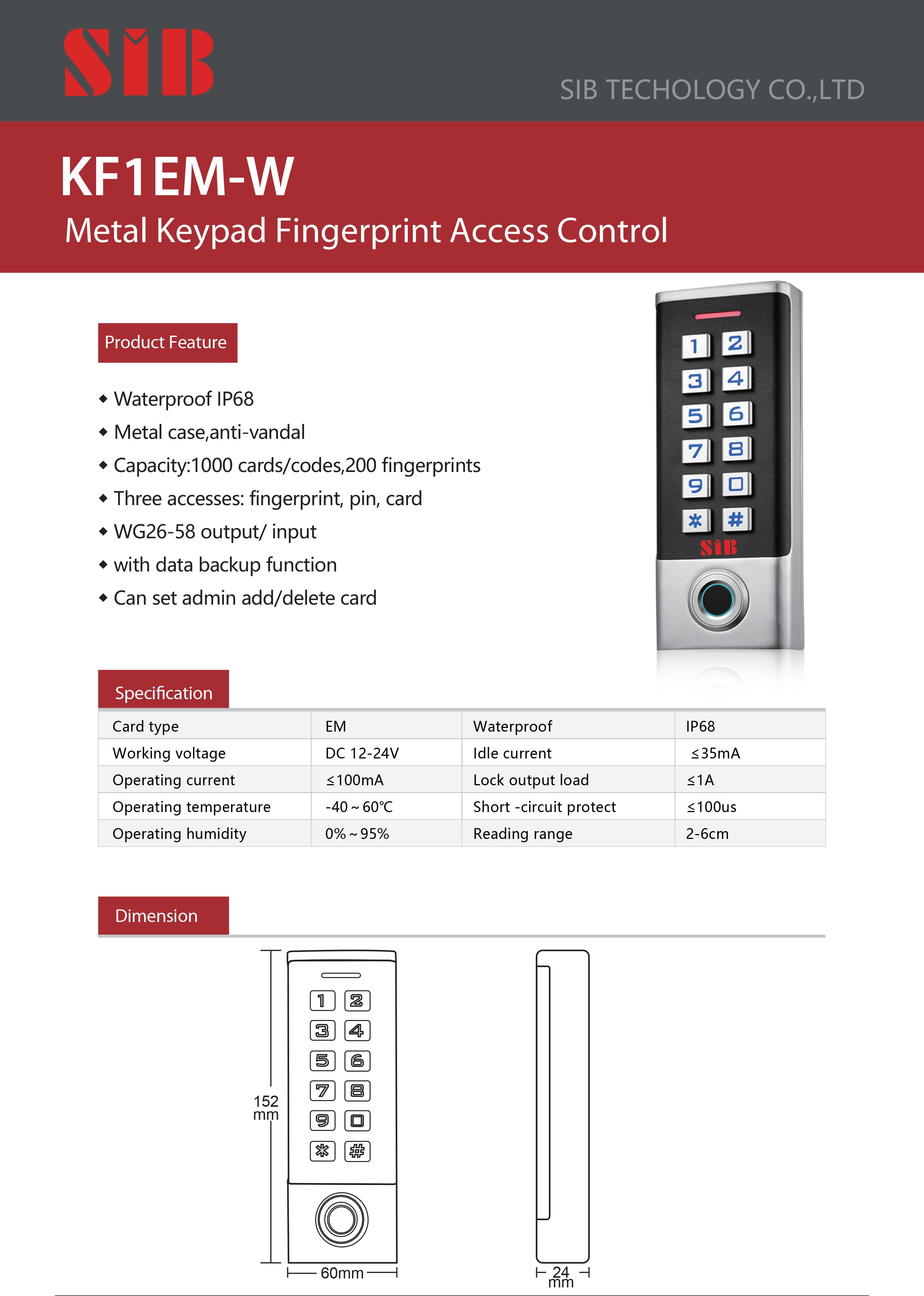

2. Technical Specifications
- Operating Voltage: DC 12-24V
- Standby Current: ≤35mA
- Operating Current: ≤100mA
- Operating Temperature: -40℃~60℃
- Operating Humidity: 0%~95%
- Access ways: Fingerprint, card, code, or multiple combination methods
3. Wiring
|
Colour |
Function |
Description |
|
Green |
D0 |
WG output D0 |
|
White |
D1 |
WG output D1 |
|
Grey |
ALARM |
Alarm signal MOS tube drain output end(optional) |
|
Yellow |
OPEN |
Exit button one end(the other end connected GND) |
|
Brown |
D-IN/LED |
Door contact switch input(LED input as reader mode)(optional) |
|
Red |
12V+ |
12V + DC Regulated Power Input |
|
Black |
GND |
12V - DC Regulated Power Input |
|
Blue |
NO |
Relay normally-on end(Connect positive electric lock "-") |
|
Purple |
COM |
Relay Public end, connect GND |
