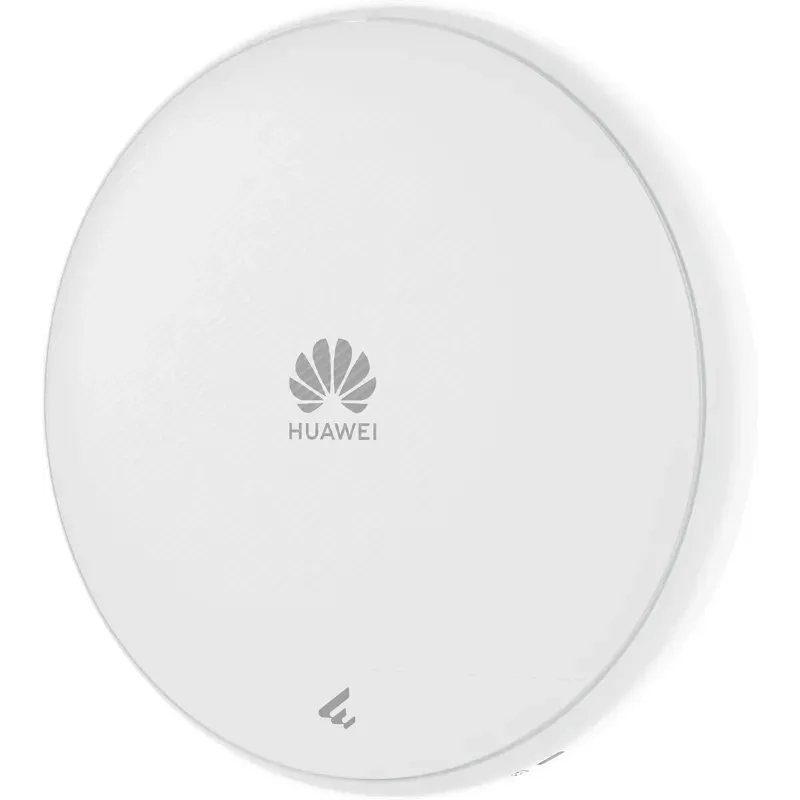

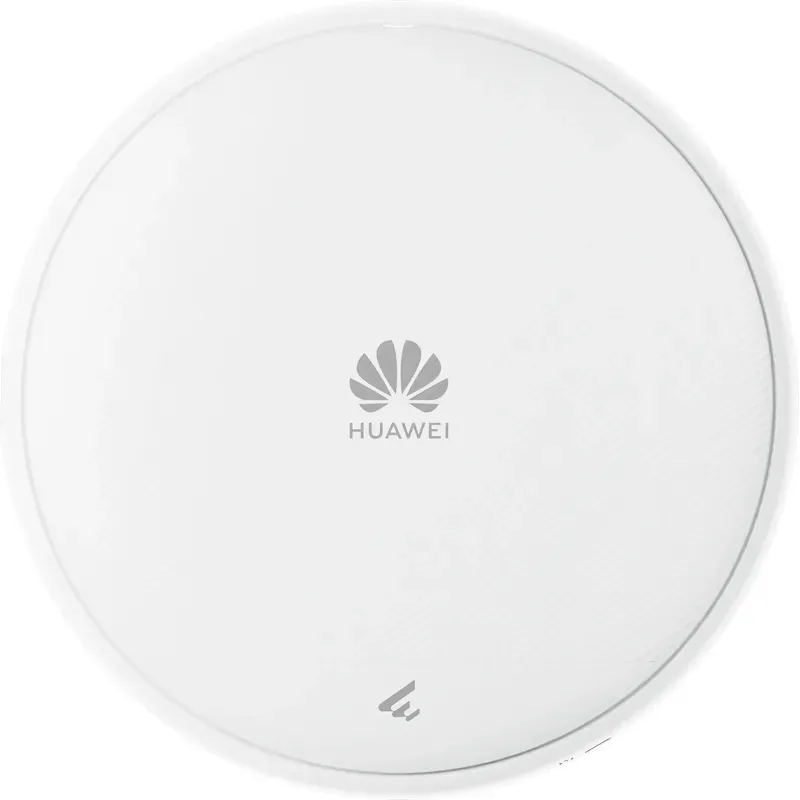

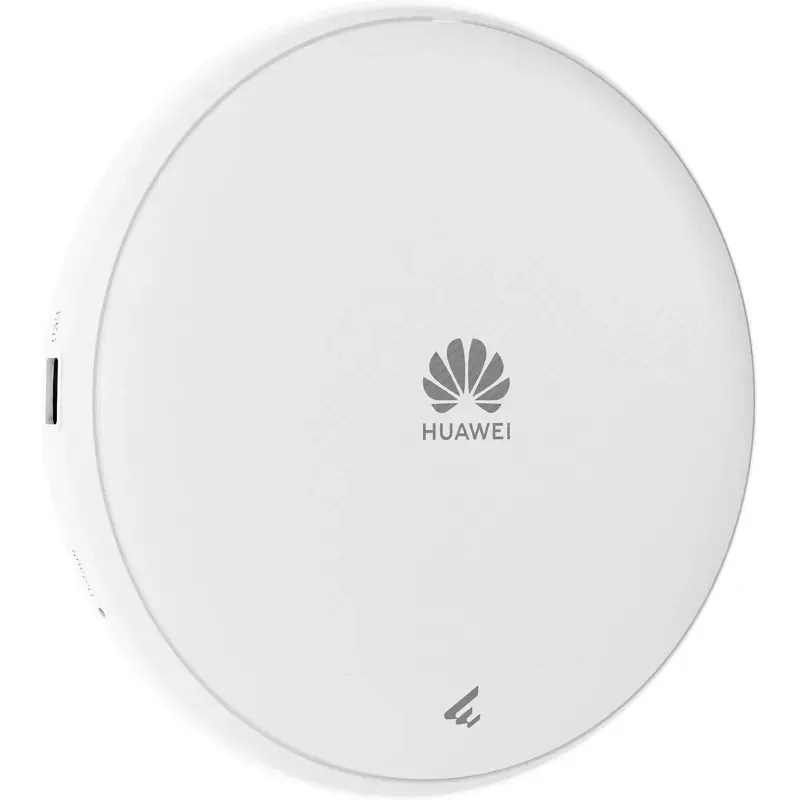

HUAWEI ekit Ap371 Wlan Wi-Fi7 Access Point-Wall/Ceiling/T-Rail-2.4Ghz-5Ghz

AP371 Huawei eKit Product Specification

Product Overview

Huawei eKit AP371 Wireless Access Point 802.11be Dual-Radio 3.57Gbps, Smart antenna, Port LAN 2.5GE

Supports managed via cloud/standalone.

Technical specifications

Installation Type

Wall, Ceiling, T-Rail

Dimensions (Diameter x Height)

180 mm x 35 mm (7.09 in. x 1.38 in.)

Weight

0.47 kg

LED indicator

Indicates the power-on, startup, running, alarm, and fault states of the system.

Maximum power consumption [W]

13.60W

Power supply mode

DC adapter, PoE

Rated input voltage [V]

12 V

Input voltage range [V]

DC: 12 V ± 10% PoE: 802.3af/at

Service port surge protection [kV]

PoE port: Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion C

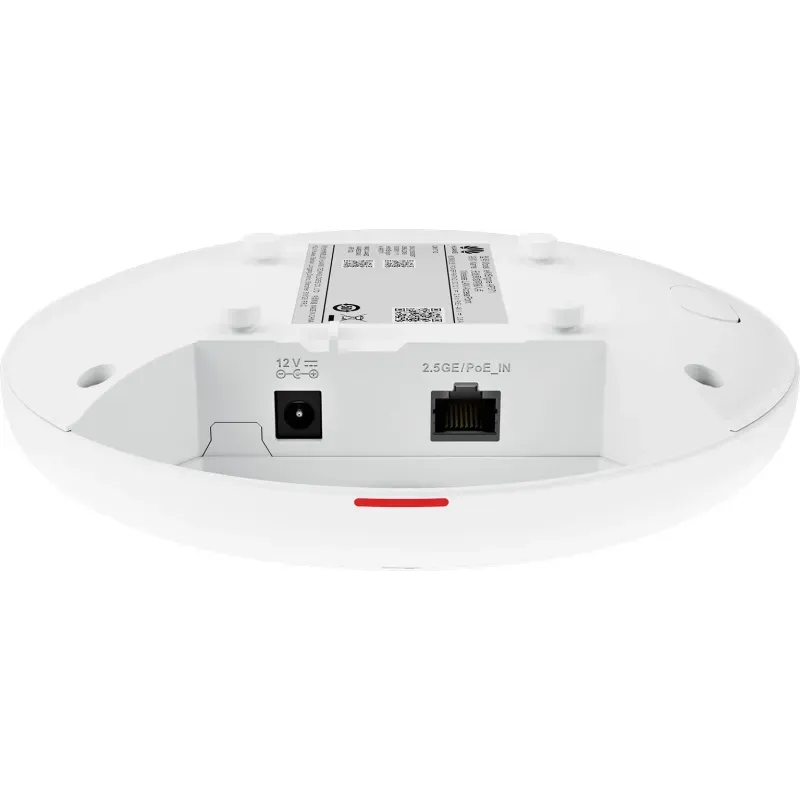

Physical ports on the entire device

1 x 100M/1GE/2.5GE electrical port
1 x USB port

Operating temperature

-10°C to +50°C

Storage temperature

-40°C to +70°C

Radio specifications

Radio number

Operating frequency band

2.4GHz, 5GHz

MIMO spatial streams

Radio 0 (2.4 GHz): 2x2
Radio 1 (5 GHz): 2x2

Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax/be
5 GHz:802.11a/n/ac/ac Wave 2/ax/be

Antenna type

Built-in smart antennas

Antenna gain

2.4 GHz: 4 dBi
5 GHz: 5 dBi

Maximum transmit power

2.4 GHz: 20 dBm/chain 23 dBm (combined power)
5 GHz: 20 dBm/chain 23 dBm (combined power)

Maximum number of SSIDs for each radio

6

Maximum number of users

≤ 128
NOTE: The actual number of users varies according to the environment.

Cloud-based management mode

WLAN features

Compliance with IEEE 802.11be and compatibility with IEEE 802.11a/b/g/n/ac/ax
Maximum ratio combining (MRC)
Space time block code (STBC)
Cyclic Delay Diversity (CDD)/Cyclic Shift Diversity (CSD)
Beamforming
Multi-user multiple-input multiple-output (MU-MIMO)
Orthogonal frequency division multiple access (OFDMA)
Compliance with 4096-quadrature amplitude modulation (QAM) and
compatibility with 1024-QAM, 256-QAM, 64-QAM, 16-QAM, 8-QAM, quadrature
phase shift keying (QPSK), and binary phase shift keying (BPSK)
Low-density parity-check (LDPC)
Frame aggregation, including A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)
802.11 dynamic frequency selection (DFS)
Short guard interval (GI) in 20 MHz, 40 MHz, 80 MHz, and 160 MHz modes
Wi-Fi Multimedia (WMM) for priority-based data processing and forwarding
WLAN channel management and channel rate adjustment
NOTE
For detailed management channels, see the Country Codes & Channels Compliance.
Automatic channel scanning and interference avoidance
Service set identifier (SSID) hiding configuration for each AP, supporting Chinese SSIDs
Signal sustain technology (SST)
Unscheduled automatic power save delivery (U-APSD)
Automatic AP onboarding
802.11k and 802.11v smart roaming
802.11r fast roaming (≤ 50 ms)
Advanced cellular coexistence (ACC), minimizing the impact of interference from cellular networks

Network features

Compliance with IEEE 802.3ab
Auto-negotiation of the rate and duplex mode and automatic switchover between the Media Dependent Interface (MDI) and Media Dependent Interface Crossover (MDI-X)
Compliance with IEEE 802.1q
SSID-based VLAN assignment
DHCP client, obtaining IP addresses through DHCP
STA isolation in the same VLAN
Access control lists (ACLs)
Unified authentication on the Cloud management platform
Network Address Translation (NAT)

QoS features

Priority mapping and scheduling that are compliant with WMM to implement priority-based data processing and forwarding
WMM parameter management for each radio
WMM power saving
Priority mapping for upstream packets and flow-based mapping for downstream packets
Queue mapping and scheduling
User-based bandwidth limiting
Airtime scheduling
Air interface HQoS scheduling

Security features

Open system authentication
WEP authentication/encryption using a 64-bit, 128-bit, 152-bit or 192-bit encryption key
WPA2-PSK authentication and encryption (WPA2-Personal)
WPA2-802.1X authentication and encryption (WPA2-Enterprise)
WPA3-SAE authentication and encryption (WPA3-Personal)
WPA3-802.1X authentication and encryption (WPA3- Personal)
WPA-WPA2 hybrid authentication
WPA2-WPA3 hybrid authentication
802.1X authentication, MAC address authentication, and Portal authentication
DHCP snooping
Dynamic ARP Inspection (DAI)
IP Source Guard (IPSG)

Maintenance features

Unified management and maintenance on the Cloud management platform
Automatic login and configuration loading, and plug-and-play (PnP)
Batch upgrade
Telnet
STelnet using SSHv2
SFTP using SSHv2
Web-based local AP management through HTTP or HTTPS
Real-time configuration monitoring and fast fault locating using the NMS
System status alarm
Network Time Protocol (NTP)
