Description
x| Specifications | |
|---|---|
| Model | CS-HP7-R110-2W2TFC |
| Outdoor Doorbell Parameters | |
| Image Sensor | 1/2.7" Progressive Scan CMOS (supports low light sensitivity) |
| Lens | 2.0 mm @ F2.2, view angle: 162° (Diagonal) |
| Day & Night | IR-cut filter with auto-switching, 850nm infrared light x 2 (max. 6m) |
| Max. Resolution | 2K (2048x1296) |
| DNR | 2D / 3D DNR |
| Video Compression | H.265 / H.264 |
| Frame Rate | Max: 15fps; self-adaptive during network transmission |
| Outdoor Doorbell Interface | |
| Audio Input | Built-in high-sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Doorbell Button | Supports, 1 button. Can set the light on or off. |
| Name Card |
Supports, handwritten. 3 cards stickers included (1 sticker already on the intercom panel). |
| Terminal |
Two wiring ports to connect screen. Two wiring ports to connect gate. Two wiring ports to connect electric strike plate. |
| Functions | |
| Intelligent Alarm | Smart human motion detection; loitering Card |
| Tamper Alarm | Supports |
| Video Intercom | Long-distance video two-way talk |
| Connection and Function | |
| Connection Method |
Wired connection (2-Wired, capable with 4-Wired), Digital signal transmission |
| Transmission Distance |
Φ 2 x 0.75mm² , max.50m Φ 2 x 1.5mm² , max.100m Twisted pair , max.120m |
| Open the Door (Gate) |
Supports. 2 wiring ports. 1-10m distance. The intercom panel provides a "dry" -contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V/2A |
| Unlock (Electric Strike Plate) |
Supports. 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V/1.1A, other wise should do as user manual. |
| Door Open Methods |
1.RFID badge unlock (CPU card × 5 pcs) 2.App remote unlock 3.Indoor display unlock |
| General | |
| Operation Conditions | -30°C to 60°C , Humidity 95% or less (non-condensing) |
| Ingress Protection Grade | Waterproof, with shield cover |

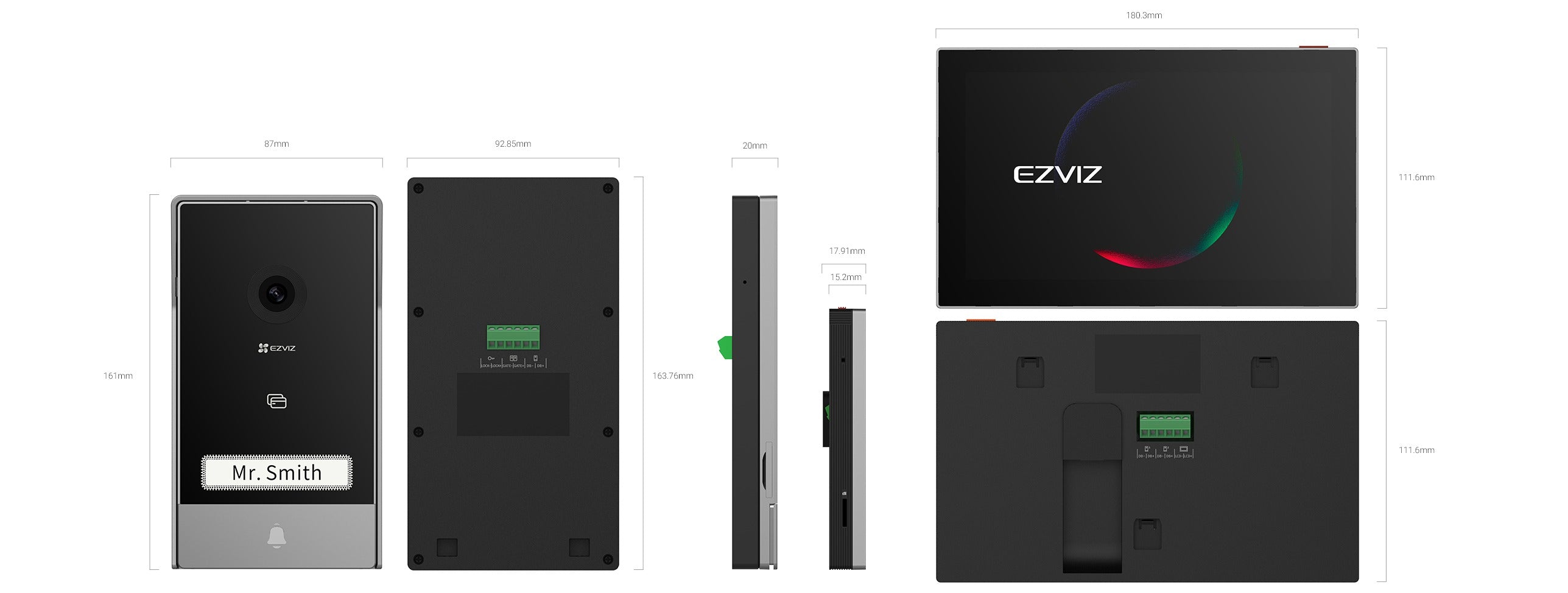

| Size | 161 × 87 × 20mm (6.34 × 3.43 × 0.87 inch) |
| Power Supply | 24V DC from screen |
| Interior Display | |
| Display Size | 7" touch screen |
| Resolution | 1024 × 600 |
| Interface | |
| Audio Input | Built-in high-sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Button | Screen on / off button |
| Terminal |
Two wiring ports to connect 1st outdoor doorbell. Two wiring ports to connect 2nd outdoor doorbell. Two wiring ports to connect extra interior screen. (not include the kit) |
| SD Card | Supports up to 512GB |
| Network Parameters | |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Protocol | EZVIZ Connect Protocol |
| Wi-Fi Parameters | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n, 802.11ac |
| Frequency Range | 2.4GHz ~ 2.4835GHz 5.15GHz ~ 5.25GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps |
| Function | |
| Multiple ringtones | Up to 20 ringtones |
| Functions | Live view, Playback, Two-way talk, Video call |
| General | |
| Operation Conditions | -10°C to 45°C, Humidity 95% or less (non-condensing) |
| Weight | Net weight: 855 g (30.16 oz) |
| Size | 180 × 111 × 15 mm (7.09 × 4.37 × 0.59 inch) |
| Power Supply | DC 24V 1A power supply, adaptor (100-240Vac) |
| Power Consumption | 8W, Max. 24W |
