Description
x| Specifications | |
|---|---|

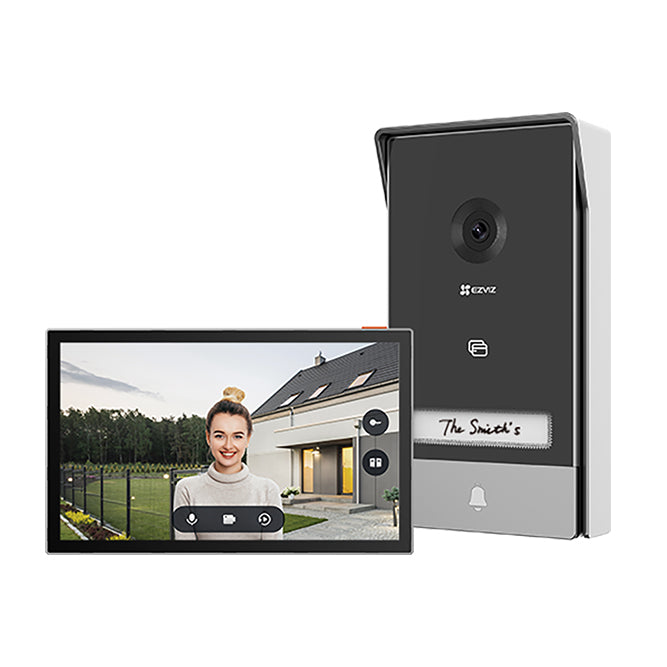

| Model | CS-HP7-R100-1W2TFC |
| Outdoor Doorbell | |
| Image Sensor | 1/2.7" Progressive Scan CMOS (Supports low light sensitivity) |
| Lens | 2.0 mm @ F2.2,viewing angle: 162° (Diagonal) |
| Day & Night | IR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m) |
| Max. Resolution | 2K (2048 × 1296) |
| DNR | 2D / 3D DNR |
| Video Compression | H.265 / H.264 |
| Frame Rate | Max: 15fps; Self-Adaptive during network transmission |
| Outdoor Panel Interface | |
| Audio Input | Built-in high-sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Doorbell Button | Supports 2 buttons; Can set the light on or off |
| Name Card | Supports handwritten; 3 cards stickers included (1 sticker already on the intercom panel) |
| Terminal | Two wiring ports to connect screen. Two wiring ports to connect gate. Two wiring ports to connect electric strike plate. |
| Functions | |
| Intelligent Alarm | Smart human motion detection, Lingering Detection |
| Tamper Alarm | Supports |
| Video Intercom | Long-distance video two-way talk |
| Connection and Function | |
| Connection Method | Wired connection (2-Wired, capable with 4-Wired), Digital signal transmission |
| Transmission Distance | Φ 2 x 0.75 mm2: max.50 m Φ 2 x 1.5 mm2: max.100 m Twisted pair: max.120 m |
| Video Intercom | Long-distance video two-way talk |
| Open the door (Gate) | Supports 2 wiring ports; 1 - 10 m distance The intercom panel provides a “dry”-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A |
| Unlock (Electric Strike Plate) | Supports 2 wiring ports; 1 - 10 m distance The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 1.1A, other wise should do as user manual |
| Door Open Methods | 1. RFID badge unlock (3 pcs / family) 2. App remote unlock 3. Indoor monitor unlock 4. QR code unlock |
| General (Outdoor Panel) | |
| Operation Conditions | -30°C to 60°C, Humidity 95% or less (non-condensing) |
| IP Grade | Waterproof, with shield cover |
| Power Supply | 24V DC from screen |
| Indoor Monitors | |
| Display Size | 7” touch screen |
| Resolution | 1024 × 600 |
| Interface | |
| Audio Input | Built-in high-sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Button | Screen on / off button |
| Terminal | Two wiring ports to connect the outdoor panel |
| MicroSD Card | Supports microSD card (max. 512 GB) |
| Network Parameters | |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wi-Fi Parameters | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n, 802.11ac |
| Frequency Range | 2.4GHz ~ 2.4835GHz 5.15GHz ~ 5.25GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps |
| Function | |
| Multiple ringtones | Up to 20 ringtones |
| Functions | Live view, playback, two-way talk, video call |
| General (Indoor Monitor) | |
| Operation Conditions | -10°C to 45°C, Humidity 95% or less (non-condensing) |
| Power Supply | DC 24V / 1A power supply, adaptor (100- 240Vac) |
| Power Consumption | 8W, Max. 24W |
| General (HP7 2-Family Kit) | |
| Weight | Net weight: 1010 g (35.63 oz) |

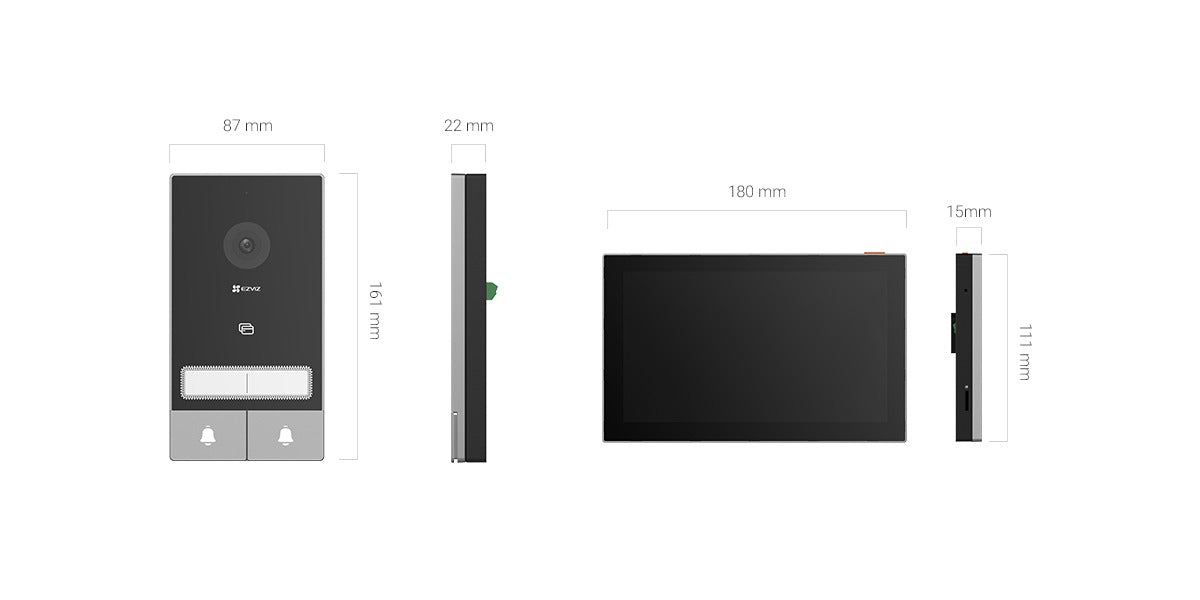

| Size | Screens: 180 × 111 × 15 mm (7.09 × 4.37 × 0.59 inch) Outdoor Panel: 161 × 87 × 22 mm (6.34 × 3.43 × 0.87 inch) |
| In the box | |
| In the box | Monitor × 2 |
| - Wall Bracket for Monitor × 2 | |
| - Power Adapter for Monitor × 2 | |
| - Drill Template for Monitor × 2 | |
| - Intercom Panel (Doorbell) with a Weather-proof Shield | |
| - Drill Template for Intercom Panel | |
| - Screwdriver | |
| - Badges × 6 | |
| - Screw Kit × 3 | |
| - Name Card × 2 | |
| - Wires and Wire Connectors × 2 | |
| - DC 24V Power Supply Jack Connector Cable × 2 | |
| - Regulatory Information × 2 | |
| - Quick Start Guide × 2 | |
