DAHUA DH-PFS3010-8GT-96 10-PORT UNMANAGED DESKTOP SWITCH WITH 8 PORT POE

Dahua PFS3010-8GT-96 unmanaged switch with 8 PoE ports, 2 uplink ports, supporting IEEE802.3bt and Hi-PoE, 90W max power, PoE watchdog, and intelligent management

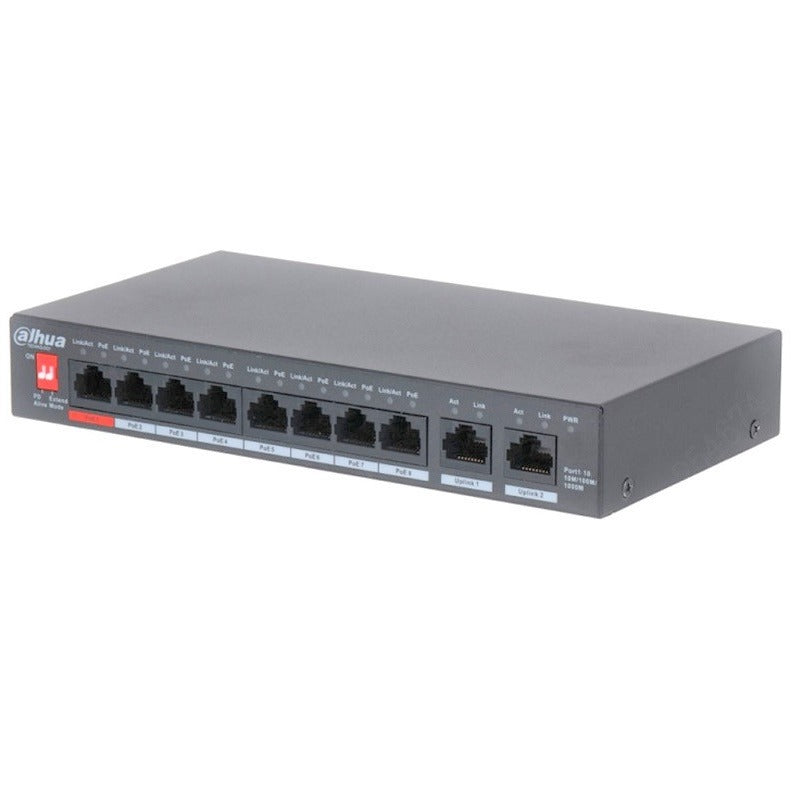

DH-PFS3010-8GT-96 is an unmanaged Desktop Switch with 8 ×10/100/1000Mbps PoE Ports. It provides 8 × 10/100/1000 Mbps Ethernet ports and 2 × 10/100/1000 Mbps uplink ports. The product is equipped with two types of transmission modes (Extend Mode On/ Extend Mode Off). The red port supports the IEEE802.3bt and the Hi-PoE standards. The maximum power consumption is 90 W. It also supports PoE watchdog to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost.

Provides control over power consumption and offers real-time monitoring to ensure power supplies receive priority with important ports and to prevent malfunctions caused by changes in power consumption. Supports ultra wide power supplies and is able to adapt to IPC power fluctuations.

The red ports support IEEE802.3af, IEEE802.3at, IEEE802.3bt and Hi-PoE standards, with a maximum output power consumption rate of 90W per port. Suitable for powering high-power devices.

PoE Watchdog can be switched on by dialing or turning on the WEB page switch. It enables the switch to automatically detect port status and restart failed ports to recover connection in case of IPC connection exception. This enables intelligent operation and maintenance management in its truest sense, effectively reducing manual maintenance costs.

By dialing or enabling long-range transmission on the WEB interface, the transmission distance of a PoE port can be up to 250 m, meeting the requirements of wired transmission. Supports 8-pin simultaneous power supply (1/2/4/5 positive, 3/6/7/8 negative).

The device is applicable for use in different scenarios, including home, office, server farm, and small mall.

• Intelligent PoE

• 8-pin assignment PoE power supply

• Long distance PoE

• PoE watchdog

• BT 90W

• All-giga ports

• Wide working temperature

• Long Distance PoE
