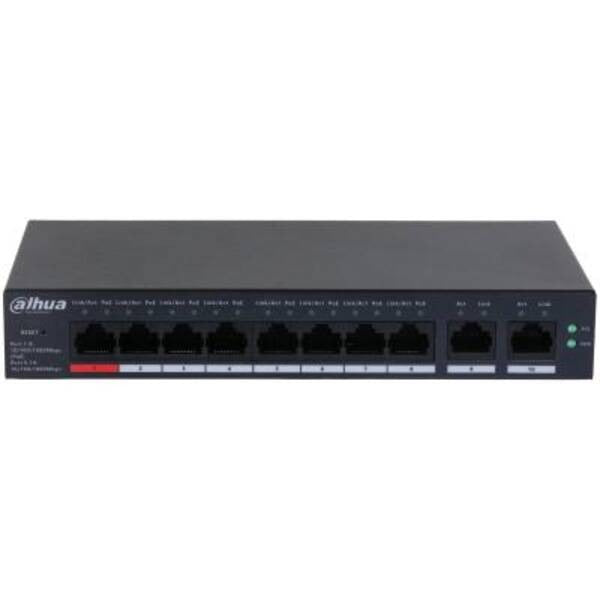

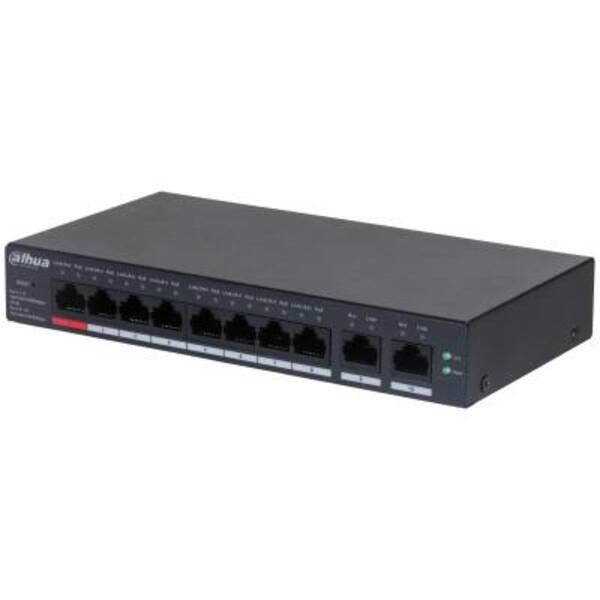

DAHUA DH-CS4010-8GT-110 10 PORT CLOUD MANAGED DESKTOP GIGABIT SWITCH WITH 8-PORT POE

Dahua CS4010-8GT-110 Cloud Managed 10-Port Gigabit Desktop Switch with 8 PoE Ports

The Dahua CS4010-8GT-110 is a high-performance cloud managed Gigabit desktop switch designed for professional network and PoE power deployment in small and medium-sized environments. It delivers stable data transmission, intelligent power management and centralized cloud control, making it well suited for video surveillance systems, access control installations and business IT networks.

This model features a total of 10 Gigabit Ethernet ports, including 8 PoE-enabled interfaces that support IEEE802.3af, IEEE802.3at, IEEE802.3bt and Hi-PoE standards. Red PoE ports provide up to 90 W per port, while orange ports deliver up to 60 W, allowing the switch to reliably power high-consumption devices such as PTZ cameras and advanced network equipment. Intelligent PoE functionality enables precise power allocation and remote PoE on/off control.

For extended installations, the CS4010-8GT-110 supports long-distance PoE transmission of up to 250 meters with reduced bandwidth, ensuring dependable connectivity in large buildings, warehouses and distributed network layouts. Compliance with IEEE802.3, IEEE802.3u, IEEE802.3x and IEEE802.3ab standards guarantees broad compatibility and smooth network performance.

Cloud-based management is provided through the DoLynk Care platform, offering real-time monitoring, device status visualization and instant alarm notifications. LLDP-based network topology management allows administrators to clearly view the network structure, quickly locate faults and perform remote maintenance. The integrated PoE Watchdog automatically detects abnormal device behavior and restarts PoE ports to restore connectivity without manual intervention.

Built with a fully enclosed metal housing, the CS4010-8GT-110 ensures efficient heat dissipation and reliable operation in temperatures ranging from -10 °C to 55 °C. Comprehensive protection against overvoltage, overcurrent, static electricity, lightning strikes and electromagnetic interference makes this switch a durable solution for continuous operation in demanding environments.

Key features

• Cloud managed Gigabit desktop switch with 10 Ethernet ports
• 8 PoE ports supporting IEEE802.3af/at/bt and Hi-PoE
• Up to 90 W per port for high-power devices
• Long-distance PoE transmission up to 250 meters
• Intelligent PoE power management and remote PoE control
• Real-time monitoring via DoLynk Care cloud platform
• LLDP-based network topology visualization
• PoE Watchdog for automatic device recovery
• Loop protection and STP support for network stability
• Fully enclosed dust-proof metal housing with wide temperature support
